SAPS-007S – Single Piles and Platform Foundations

SAPS-007S – Single Piles and Platform Foundations

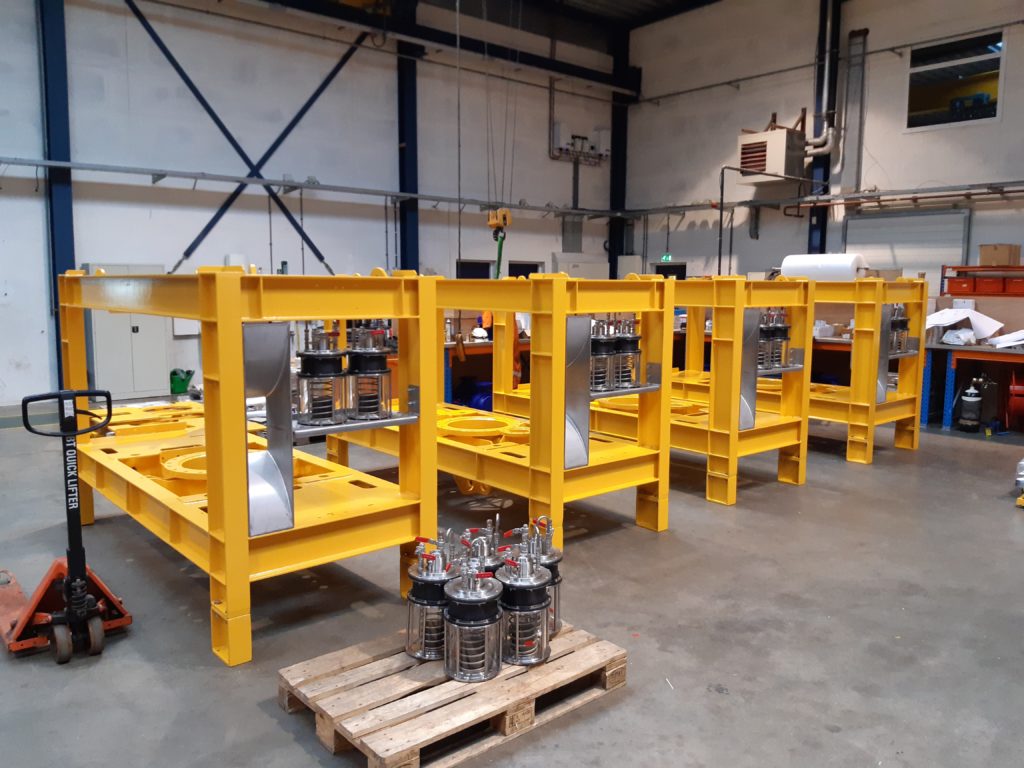

The SAPS-007S Suction Pump is designed for the installation of suction pile founded platforms. The suction pump unit is based on the existing SAPS-007 suction pump unit. The SAPS-007S suction pump units have increased pumping capacities (Pdiff: 6.8 bar, Flow: 500 m3/hr), for faster and more accurate installations of our suction piles and their foundations.



Features of SAPS-007S suction pump

  • 100% redundancy using two high flow pumps 2 x 250 m3/hr (total 500 m3/hr).
  • Max. differential pressure up to 7 bar.
  • Venting is carried out using 20″ vent valve through the pump.
  • No need for separate vent valves on top of the suction piles.
  • Max. water depth of up to 150 m.
  • Powered by an electrical umbilical from the control container.
  • Inclination, differential pressure and penetration controlled from 20ft control container.
  • Measuring of differential pressure.
  • Measuring of X&Y inclination.
  • Measuring of internal soil level.
