SAPS-005 – Suction installations of Multi-pile structures.

SAPS-005 – Suction installations of Multi-pile structures.

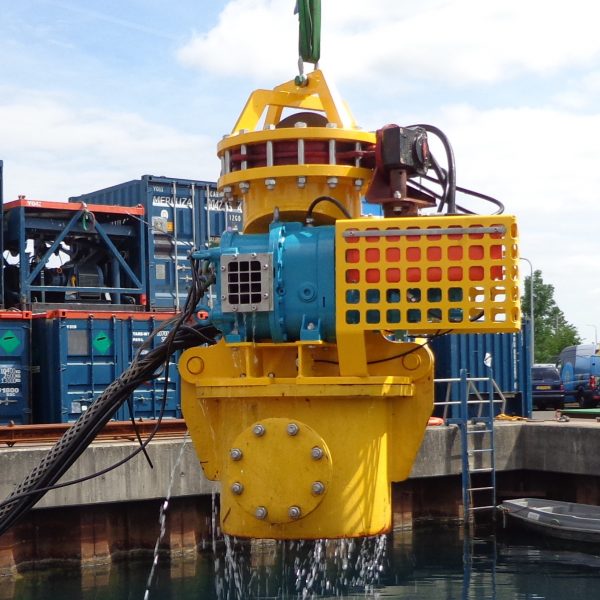

The SAPS-005 Suction Pump is designed for the installation of suction pile founded multi-pile structures.

Features of the SAPS-005 suction pump

  • Max. water depth: 3000m
  • Max. water flow Lobe pump 43 m3/hr
  • Differential pressure range 0 – 5.0 bar
  • Vent valve: 1 no’s x 14”
  • Power consumption Single lobe pump 13 kW @ 5.0 bar
  • Hydraulic input Flow 40 l/min
  • Pressure 200 bar (net)
  • Pile interface flange 20”Standard SPT
  • 100% redundant first pump up to 250 m3/hr flow & second pump 43 m3/hr.
  • Max. differential pressure up to 5.0 bar.
  • 30″ connection.
  • Measuring of differential pressure.
  • Measuring of X&Y inclination by bullseye.
  • Measuring of internal soil plug.
  • 100% redundant first pump up to 250 m3/hr flow & second pump 43 m3/hr.
  • Max. differential pressure up to 5.0 bar.
  • 30″ connection.
  • Measuring of differential pressure.
  • Measuring of X&Y inclination by bullseye.
  • Measuring of internal soil plug.
