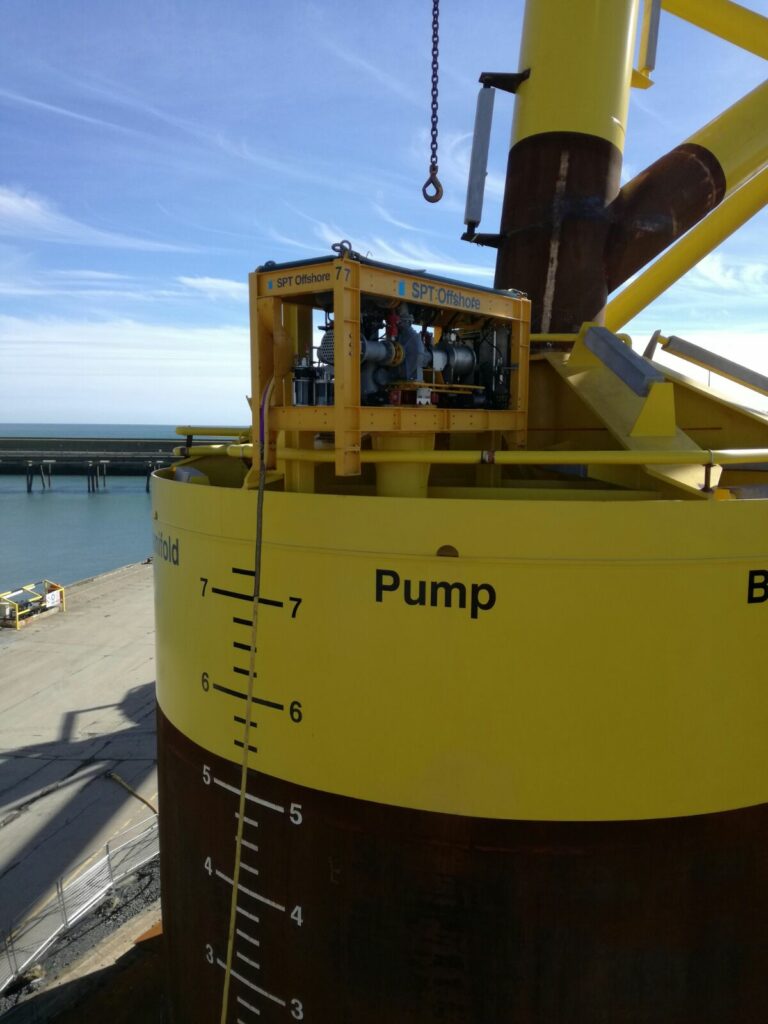

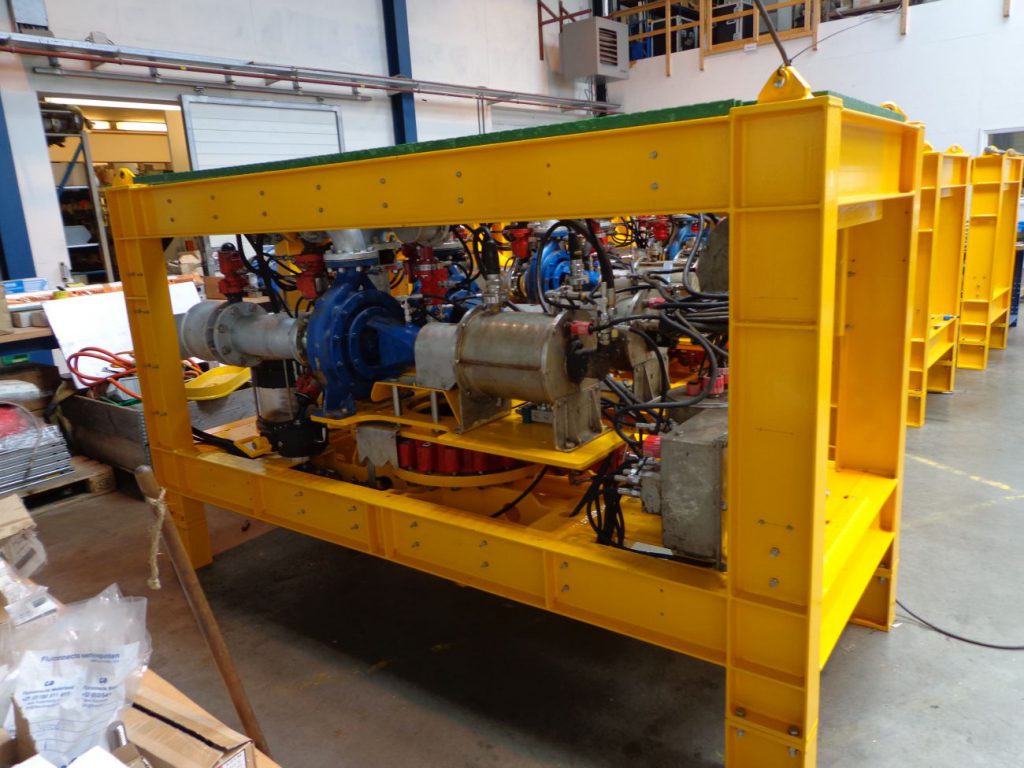

The SAPS-007 Suction Pump is designed for the installation of suction pile founded platforms.
Features of SAPS-007 suction pump
- 100% redundancy using two high flow pumps 2 x 150 m3/hr (total 300 m3/hr).
- Max. differential pressure up to 5 bar.
- Venting is carried out using 20″ vent valve through the pump.
- No need for separate vent valves on top of the suction piles.
- Max. water depth of up to 150 m.
- Powered by an electrical umbilical from the control container.
- Inclination, differential pressure and penetration controlled from 20ft control container.
- Measuring of differential pressure.
- Measuring of X&Y inclination.
- Measuring of internal soil level.
