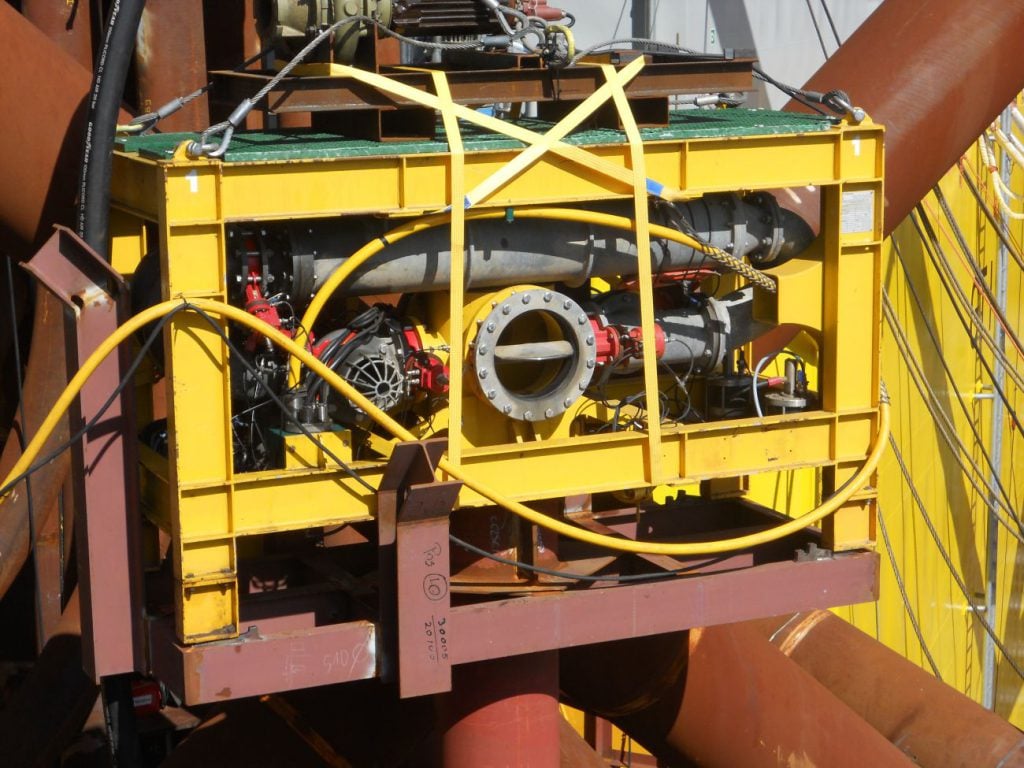

The SAPS-004 Suction Pump is designed for the installation of suction pile founded platforms.

Features of the SAPS-004 suction pump

  • 100% redundancy using two high flow pumps 2 x 220 m3/hr (total 440 m3/hr).
  • Max. differential pressure up to 8 bar.
  • Venting is carried out using 2 x 20″ vent valves through the pump.
  • No need for separate vent valves on top of the suction piles.
  • Max. water depth of up to 150 m.
  • Powered by an electrical umbilical.
  • Inclination, differential pressure and penetration controlled from 20ft control container.
  • Measuring of differential pressure.
  • Measuring of X&Y inclination.
  • Measuring of internal soil level.
